SharePoint Interface Configuration

Actions

The following actions can be configured in the interface script of a method.

Parameter	Required	Default Value	Description
Type	yes		The type of data that needs to be retrieved. Possible values: ListName
Name	yes		The title of SharePoint list. No GUID or internal name allowed.
Action	yes		Specifies the action to perform in the SharePoint list. Possible values: Select Insert Update Delete: deletes the item permanently. Recycle: if the recycle bin is enabled, it will move the item (document) to the recycle bin. If disabled, it will remove it.
Filter	optional		CAML query to filter the list. More documentation about creating CAML queries can be found at MSDN or download the U2U CAML Builder. Example when to filter on the field Booked by: `Filter=<Query> <Where> <Eq> <FieldRef Name='Booked_x0020_by' /> <Value Type='Text'>{$Booked By}</Value> </Eq> </Where> </Query>`
OrderBy	optional		Sort the list ascending or descending. More documentation about creating CAML queries can be found at MSDN or download the U2U CAML Builder. Example to sort the field Booked by descending: `OrderBy=<OrderBy> <FieldRef Name='Booked_x0020_by' Ascending='False' /> </OrderBy>`
Scope	optional	DefaultValue	Specifies the scope for returning list items and list folders in a list view. Possible values: DefaultValue: enumeration whose values specify that all list items and all list folders in the current list folder are returned in the list view. Recursive: enumeration whose values specify that all list items in the list are returned in the list view. RecursiveAll: enumeration whose values specify that all list items and all list folders in the list are returned in the list view. FilesOnly: enumeration whose values specify that all list items in the current list folder are returned in the list view.
SearchViaLookupId	optional	true	True to specify that any lookup fields used in the CAML query must be searched via their lookup id instead of the value.
LookupReturnType	optional	Id	Only applicable on SharePoint lookup and person or group field types . Specifies wheather to return the id, value or both. When both are returned, they are separated with ;#. A multi lookup field returns the id's separated with ;#;#. Possible values: Id Value Both
DatesInUtc	optional	false	Specifies if datetime values must be returned in UTC format.
StartInFolder	optional		When fetching, look for files in the specified folder. This must be a relative URL, e.g.: /sites/My Site/Shared Documents/My Folder This can also prevent list view threshold. For write actions, this is the folder where documents will be created / updated.
IgnoredFieldsOnUpdate	optional		A comma separated list containing the input field names of the method which should be ignored during an update. By default, readonly fields in SharePoint can be updated via our interface. If you don't want this behavior, you can exclude those fields via this setting. Example to ignore the Title and Date fields when updating: `IgnoredFieldsOnUpdate=Title,Date`
ActionForCheckedOutDocument	optional	Discard	Specifies the action when the document is checked out. By default, the changes in a check out will always by discarded. Discard: this is the default option: the changes in the check out will be discarded. None: the item will not be updated when the item is checked out, an error message will be shown to the user. OverwriteCheckIn: check in the changes of the current check out, overwrite the version of the document when checking in. MinorCheckIn: check in the changes of the current check out, create a minor version of the document. MajorCheckIn: check in the changes of the current check out, create a major version of the document.

Fields

The link between the SharePoint list and the field in the object or method is set in the External Name property. This property must be filled with the internal name, static name or title of the SharePoint column (checked in this order). If no match is found, the field will remain empty.

Insert / Update

The following fields will never be updated, even if they are configured in the external name property:

LinkFileName

Examples

Fetch All Items

In this example all items from a SharePoint list are retrieved.

This is the default tasks list view from SharePoint. The method in the Ometa Framework will retrieve these two items.

SharePoint Tasks List

The task list has multiple columns, the method will retrieve the following columns.

SharePoint Tasks List Columns

Field	Type	External name
Assigned To	Text	Assigned To
Completed	Text	Completed
Created	Text	Created
Created By	Text	Created By
Description	Text	Description
Due Date	Datetime	Due Date
Modified	Datetime	Modified
Modified By	Text	Modified By
Percentage Complete	Number	PercentComplete
Predecessors	Text	Predecessors
Priority	Text	Priority
Start Date	Datetime	Start Date
Task Name	Text	Task Name
Task Status	Text	Task Status

Fetch Tasks By Assigned To

In this example all the tasks are retrieved by some person.

This is the default tasks list view from SharePoint. The method in the Ometa Framework will retrieve these two items.

SharePoint Tasks List

The task list has multiple columns, the method will retrieve the following columns.

SharePoint Tasks List Columns

Type=ListName
Name=Tasks
Action=Select
Filter=<Query><Where><And><Eq><FieldRef Name='AssignedTo' /><Value Type='UserMulti'>{$Assigned To}</Value></Eq><Neq><FieldRef Name='PercentComplete' /><Value Type='Number'>1</Value></Neq></And></Where><OrderBy><FieldRef Name='DueDate' Ascending='True' /></OrderBy></Query>

Do keep in mind that the CAML query cannot contain line breaks. For readability, you can inspect the formatted CAML query below. More documentation about creating CAML queries can be found at MSDN or download the U2U CAML Builder.


<Query>
    <Where>
        <And>
            <Eq>
                <FieldRef Name='AssignedTo' />
                <Value Type='UserMulti'>{$Assigned To}</Value>
            </Eq>
            <Neq>
                <FieldRef Name='PercentComplete' />
                <Value Type='Number'>1</Value>
            </Neq>
        </And>
    </Where>
    <OrderBy>
        <FieldRef Name='DueDate' Ascending='True' />
    </OrderBy>
</Query>

Field	Type	External name
Assigned To	Text	Assigned To
Completed	Text	Completed
Created	Text	Created
Created By	Text	Created By
Description	Text	Description
Due Date	Datetime	Due Date
Modified	Datetime	Modified
Modified By	Text	Modified By
Percentage Complete	Number	PercentComplete
Predecessors	Text	Predecessors
Priority	Text	Priority
Start Date	Datetime	Start Date
Task Name	Text	Task Name
Task Status	Text	Task Status

Different Lookup Return Types

In this example you see the different result sets when playing with the Lookup Return Type parameter.

The lookup return type is only applicable on lookup and person or group field types. The predecessors field is a lookup field. The following fields are from type person or group:

Assigned To
Created By
Modified By

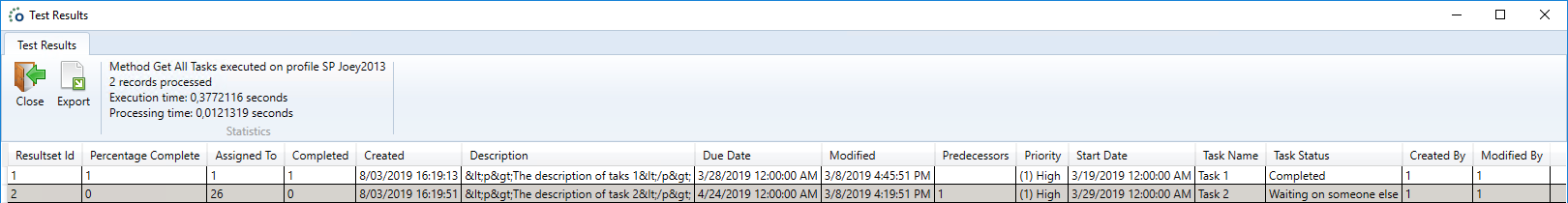

Lookup Return Type Id
