Configuring Postman for OAuth 2.0 / OIDC Authorization Code Flow with Ometa Identity Server

This guide provides step-by-step instructions for configuring Postman to initiate an Authorization Code Flow with PKCE (Proof Key for Code Exchange) against the Ometa Identity Server. This setup is ideal for testing secured API endpoints, acquiring access tokens, and leveraging automatic token renewal using refresh tokens (offline_access).

Setup Client in Ometa

To allow Postman to authenticate, you first need to register a client in the Ometa Business Connector.

1. In the Ometa Business Connector, click the blue Application Menu (top-left).
2. Navigate to Security > Clients.
3. Click Create to add a new client with the following parameters:

Ometa Field	Recommended Value / Setting	Description
Client Id	your.client	A unique identifier for the client (do not use spaces). You will use this as the Client ID in Postman.
Client Secret	[Automatically Generated]	A secret is generated automatically. Click the green refresh icon to generate a new one if needed. Important: Copy the plaintext secret immediately; once saved, it is hashed and cannot be retrieved.
Name	Your Friendly Name	A descriptive name for the client (e.g., Postman Dev Testing).
Grant Type	authorization_code	Defines the delegation flow. Choose authorization_code.
Access Token Lifetime	3600	The lifespan of the access token in seconds (default is 1 hour). Do not increase this for security reasons; use refresh tokens instead.
Enabled	true (Checked)	Check this box to make the client active. Uncheck it to temporarily disable API access.
IsAdministrator	false (Unchecked)	Only check this if the client must explicitly run under Ometa Administrator permissions. Leave unchecked unless strictly required.
Redirect Uri's	https://oauth.pstmn.io/v1/callback	Click the green + icon and add Postman's official redirect URL. This must be an exact match.
Claims	None (Optional)	Custom claims can be added here if you need to evaluate specific claims in the Ometa Rule Engine.

4. Do a Recycle of the Ometa Authority Service application pool in IIS.

Step-by-Step Configuration in Postman

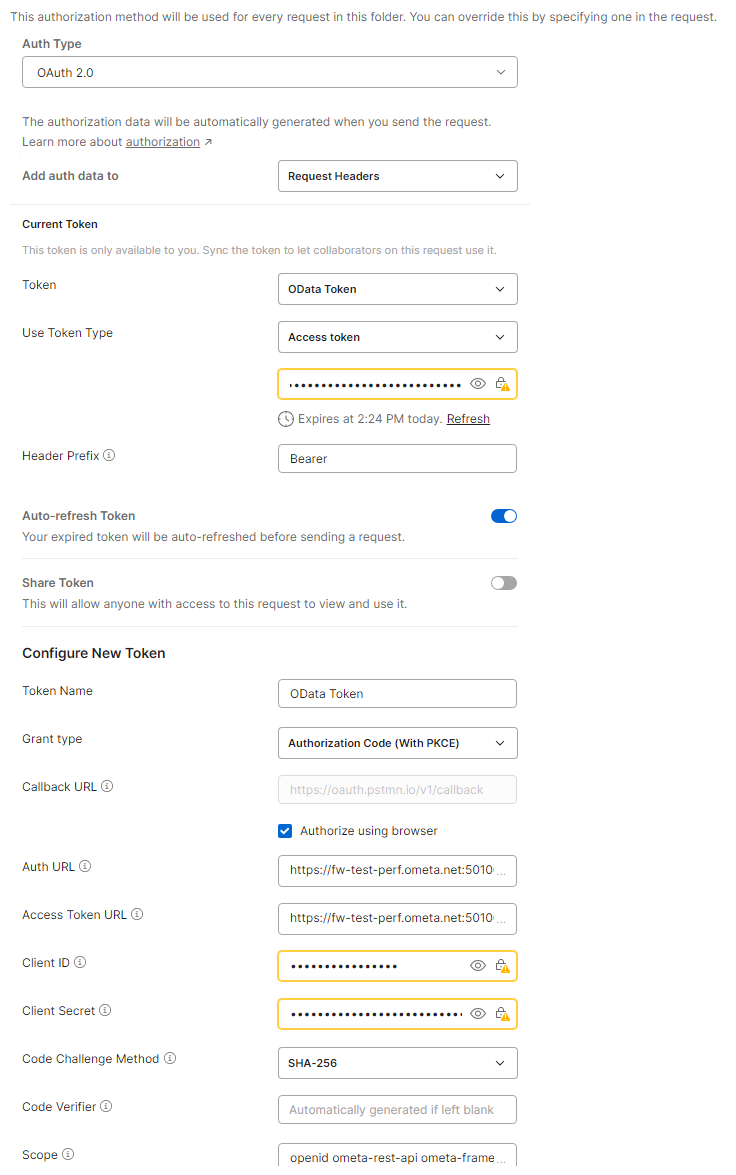

Open Postman, navigate to your request, and select the Authorization tab. Follow the steps below to configure the Authorization details:

Select Authorization Type

• Type: OAuth 2.0
• Add authorization data to: Request Headers

Configure New Token

Scroll down to the Configure New Token section and fill out the fields exactly as specified below:

Postman Field	Recommended Value / Setting	Description
Token Name	Ometa Demo Token	A friendly name for your token within Postman.
Grant Type	Authorization Code (With PKCE)	Select the option with PKCE.
Callback URL	https://oauth.pstmn.io/v1/callback	Ensure "Authorize using browser" is checked.
Auth URL	https://<url-of-ometa-auth-service>/connect/authorize	The authorization endpoint of your Ometa Identity Server.
Access Token URL	https://<url-of-ometa-auth-service>/connect/token	The endpoint where Postman exchanges the auth code for tokens.
Client ID	ometa.odata.demo	The Client ID configured in your Ometa backend.
Client Secret	<your-client-secret>	The client secret associated with your Ometa client ID (if configured as confidential).
**Code Challenge Method	SHA-256	Algorithm used for generating the code challenge.
Scope	openid profile email ometa-rest-api ometa-framework-web-api offline_access	Space-separated list of scopes. openid and offline_access are mandatory for OIDC and refresh tokens.
State	Leave Empty	Postman handles state verification automatically.
Client Authentication	Send as Basic Auth Header	Controls how the Client ID and Secret are transmitted during code exchange.

Retrieving the Tokens

1. Click the Get New Access Token button at the bottom of the Postman panel.
2. A browser window or a Postman pop-up will open, redirecting you to your Ometa login portal.
3. Authenticate with your user credentials.
4. Upon successful login, you will be redirected back. Postman will capture the code and automatically exchange it behind the scenes for an Access Token and a Refresh Token.
5. Click Proceed and then Use Token in Postman to associate the token with your active API requests.

Troubleshooting & Common Errors

invalid_request

• Reason 1: PKCE parameters (code_challenge) are missing. Ensure Code Challenge Method is set to SHA-256 in Postman.
• Reason 2: The client requested a scope (such as offline_access) that is not configured or allowed for that client in the Ometa database.

unauthorized_client

• Reason: The client ometa.odata.demo is not permitted to use the authorization_code grant type. Double-check your Ometa client configuration to ensure AllowedGrantTypes is set to GrantTypes.Code (and not restricted solely to implicit or client_credentials).

redirect_uri_mismatch

• Reason: The redirect URI requested by Postman (https://oauth.pstmn.io/v1/callback) does not match the allowed redirect URIs registered on the client inside Ometa.
