Ometa Framework Release v6.4.0

Version 6.4.0 of the Ometa Framework has been released with the following new features and changes.

Before Upgrade

Install ASP.NET Core Runtime 10.0.x Hosting Bundle

After Upgrade

Update SharePoint App Catalog

To activate the new caching strategies and performance fixes, the SharePoint Framework packages must be updated.

Locate the latest ometa-suite-apps.sppkg files in the Ometa Installation ZIP Folder.
Upload them to the Tenant or Site Collection App Catalog.

Refer to the upgrade guide for SharePoint Online
Refer to the upgrade guide for SharePoint On Premise

Update Profiles

REST - Graph Beta - On Behalf Of

If you're using the Graph Document ADM, make sure to fill in this new profile. This profile is used for the recycle bin functionality of the Graph API as this is not available in the v1.0 version yet.

Changed Functionality

Security Update: CORS & CSP Hardening

Good news: in almost all installations, no manual action is required. Starting from this version, all redirect URIs configured on your clients are automatically trusted and included in the AllowedOrigins list.

Why are we making these changes?

To align with modern browser security standards and protect the Ometa framework against vulnerabilities like Cross-Site Scripting (XSS) and clickjacking:

CORS: Modern browsers actively block credentialed cross-origin requests when wildcard origins (*) are used. Explicit origins are now required.
CSP (Content Security Policy): We introduced stricter policies to ensure only explicitly defined external domains are allowed to interact with the application.

What changed?

Wildcards (*) are removed: They are no longer supported in AllowedOrigins and will be automatically removed/ignored by the patcher.
CSP runs in Report-Only mode: The application now generates a CSP that defaults to logging violations in your browser console, without blocking resources yet.

Do I need to do anything?

You only need to take action if you use custom frontend applications or external services that bypasses the Ometa Authority Service to make cross-origin requests to Ometa, AND these domains are not configured as a redirect URI on a client.

If this applies to you (probably not), simply add the specific domains to the AllowedOrigins array in your appsettings.json file:

{
  "AllowedOrigins": [
    "https://custom.application.net"
  ],
  "EnableCsp": false
}

Key	Type	Default	Description
`EnableCsp`	`boolean`	`false`	If `false` (or missing), CSP runs in Report-Only mode (logs violations). If `true`, the browser blocks non-compliant resources.
`AllowedOrigins`	`string[]`	`[]`	List of additional trusted domains. You do not need to add your client redirect URIs here; they are included automatically.

Tip

Implementation Strategy Keep EnableCsp on false for now. We highly recommend monitoring your browser console logs for any CSP violations caused by external integrations. Add these missing origins to the AllowedOrigins list now, so your environment is fully prepared for future updates where strict enforcement (EnableCsp: true) might become the default standard. Read more.

BAM Portal Security

Starting from this version, the BAM Portal is secured by the Authority Service of the Ometa framework to avoid that potential sensitive and internal working information is available for all to see. So only users with administrator rights, defined in the Business Connector, will be able to see the log information generated by the framework.

For the authorization procedure to work correctly, some additional configuration is required to set up. First, make sure the new 'Bam Portal Url' in the [dbo].[Config] table must be set to the main BAM Portal URL. See step 11 of the install process, BAM Portal for more information on how to do this.

Secondly, the related security client needs some adaptation by adding a proper redirect URL. Follow step 16, Redirect URLs for BAM Portal for additional information if needed.

And at last, use the security dialog window Persons and Users to enable the specific administrator rights on the necessary person accounts.

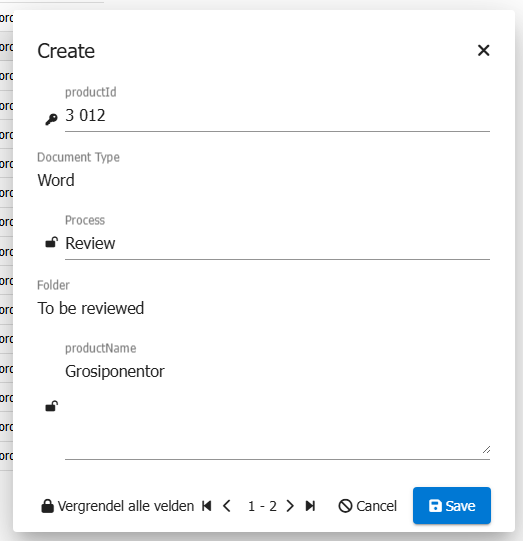

Multiple Record Icons

Previously, when opening a write view (create or update) with multiple records, the form displayed a key icon for primary key fields and a lock icon at the start of editable fields. This caused inconsistent label indentation and a cluttered appearance.

To improve clarity and visual consistency:

The key icon for primary fields has been removed, as it did not provide meaningful information to end users.
The lock icon, which indicates an editable field, has been moved to the end of the field. This change makes the form cleaner and ensures all labels are aligned properly.

Old

New Lock icons

New

Old Lock Icons

Same Source Allowed Percentage In Throttling

The Same Source Allowed Percentage In Throttling setting now applies to the Maximum Number of Instances instead of the number of currently active BCM slots. This means the allowed number of slots per source remains constant regardless of how many slots are currently in use, making throttling behavior more predictable.

For example, with a maximum of 100 instances and the setting at 20%, a single source can now always use up to 20 slots before being throttled — previously this limit fluctuated based on how many slots were active at that moment. This was most visible in item functions running in parallel (Setting 'Run sequential' disabled) as it lead to throttling if the server has a low number of active workers.

New Features

.NET 10 Platform Upgrade

The Ometa Framework has been upgraded to Microsoft .NET 10. This brings improved runtime performance, security patches, and long-term support. Ensure that .NET 10 is installed on all servers before upgrading (see Before Upgrade).

SharePoint Apps

Unified Wrappers & Enhanced Performance: The wrappers for ADM, Smart Tiles, and Gantt (ometa-suite-apps.sppkg) now share a unified codebase. This includes a new Discovery Service that executes only one network call per page load (instead of per component) and caches the result in SessionStorage to improve loading times.
Smart Caching Strategy (Ctrl + F5 Fix): Implemented a new versioning mechanism using a version.json file. The wrappers now automatically detect backend updates and force a refresh when necessary. This resolves the issue where users had to manually clear their browser cache (Ctrl + F5) after an upgrade.
Navigation Lifecycle Hooks: Introduced the window.obiz.cslEvents.onBeforeNavigate API. This allows Custom Scripting Logic (CSL) to register cleanup functions that execute when a user navigates away from a page.
- Supports: ADM and Smart Tiles web parts.

JSON Transformation

JSONata Transformation: Introduced support for JSONata expressions in Ometa Nexus, allowing for advanced data manipulation and transformation of the results returned by methods.

JSON Transformation

Cards

The Cards and Modern Forms components have received major functional updates:

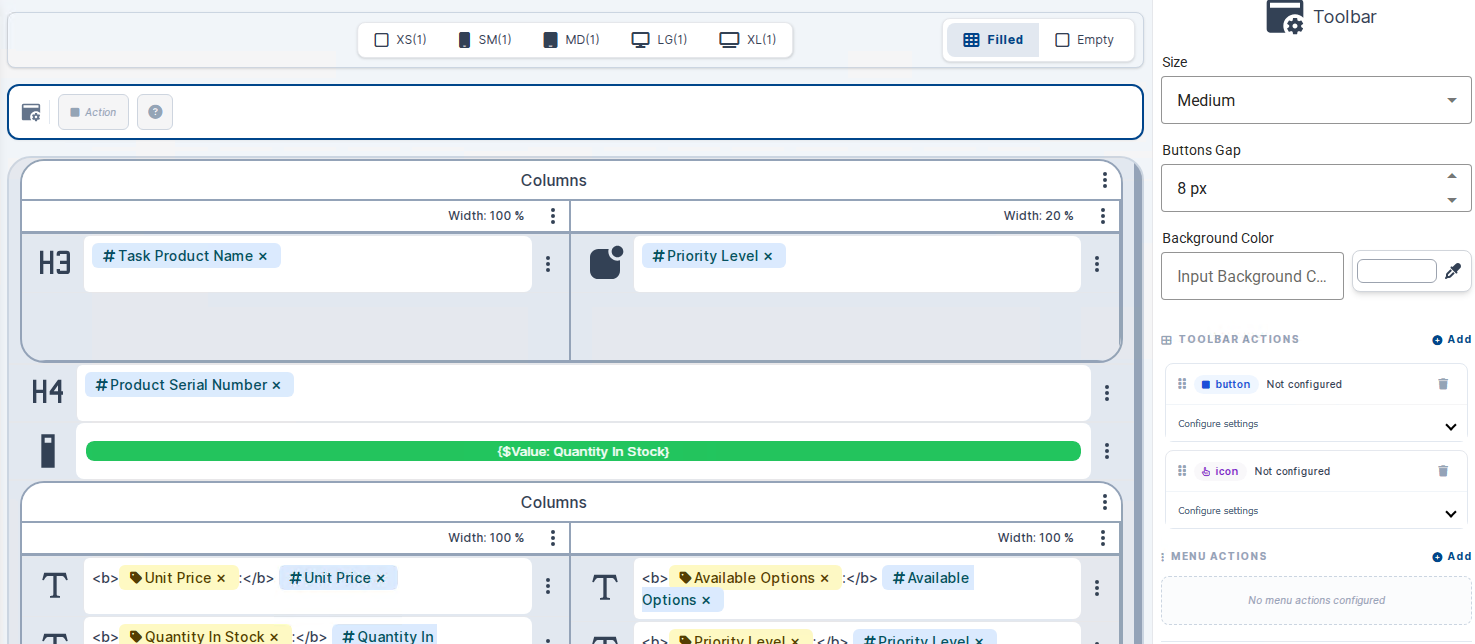

Toolbar:

Added support for configurable toolbars with header and icon buttons.

Toolbar

Pager:

Cards now support built-in pagination for larger data sets, this becomes automatically available when paging is enabled on a multi record view.

Chips:

Visualize labels, values and language labels using a modern "chip" UI component.

Chips

Empty Template:

An empty cards template is now available, allowing you to build a fully custom card layout for when no records are returned resulting normally in a boring no results message.

Empty Card Template

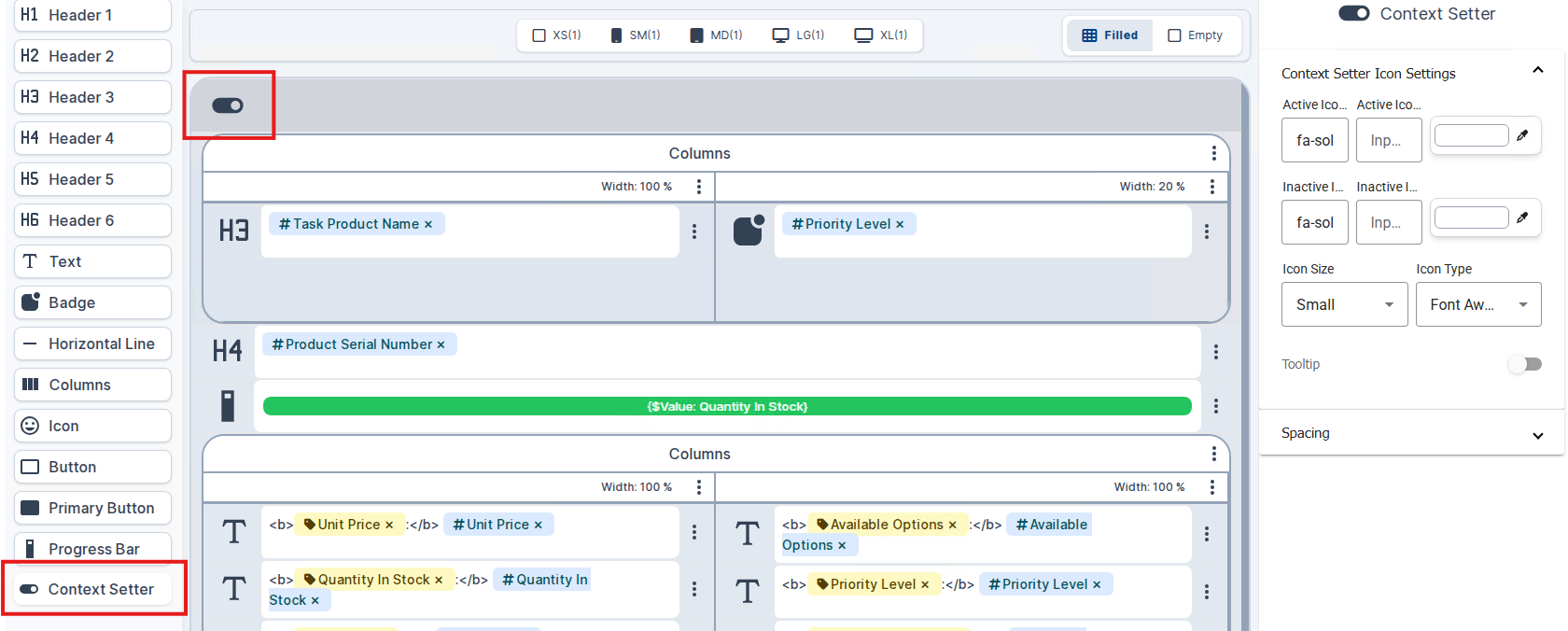

Context Setter:

Cards now support a context setter element, enabling cards to set context values that can be consumed by other components on the page.

Context setter

Breakpoints:

The breakpoints for the different media queries have been moved to the top.

Breakpoints

Timeline

Collapsed Groups: You can now set groups to be closed by default. This significantly improves performance when dealing with large datasets (1000+ groups).

Refer to the docs for more information

Building Blocks

SharePoint.BuildingBlocks.Fields:

Added option to add a default formula to a field.
Added option to add a validation formula with a message to a field.
Ensure Item and Ensure File will now process taxonomy / metadata field values. The labels or IDs can be used.
Resolved an issue where the required property of a content type field on a list was not property set.
Added a new building block to ensure a managed metadata field to a site or list.
Added functionality to SharePoint interface to update a managed metadata field.

Refer to the API for more information

Providers

You can now configure generic OpenID Connect provider with custom claim mappings. This is fully backwards compatible with existing ADFS setups.

More information about OpenID Connect
More information about Framework Configuration

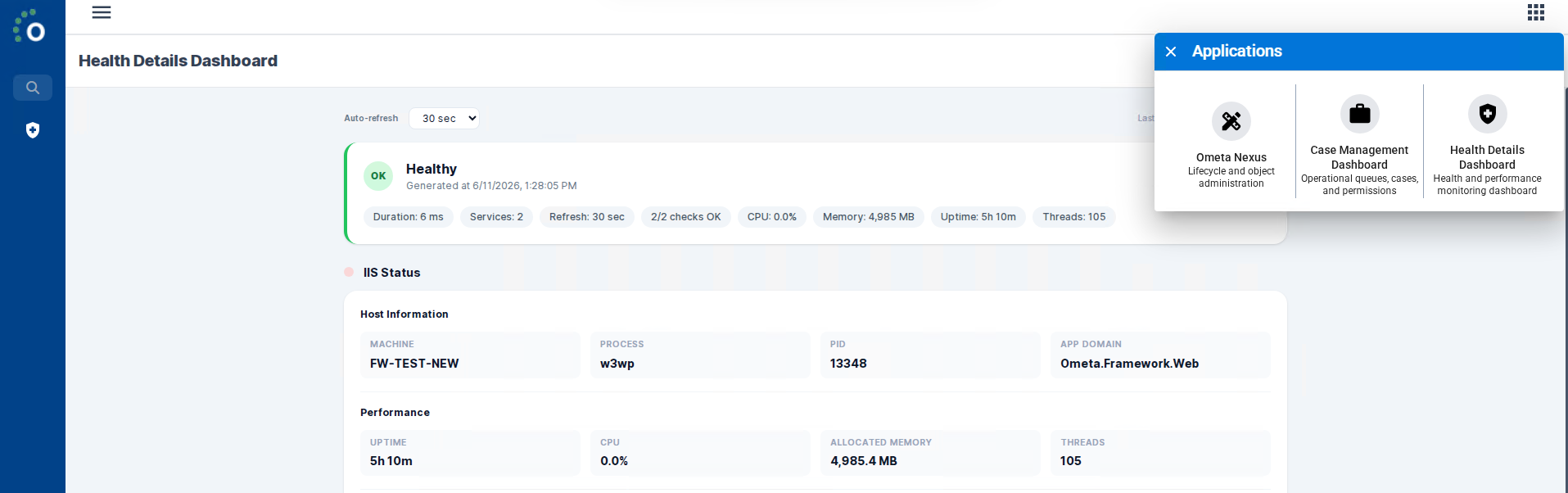

Health API & Dashboard

A new Health API and accompanying dashboard have been added to the framework. Administrators can use this to monitor the health and availability of the Ometa services at a glance, making it easier to diagnose issues and verify that the Ometas Framework is running correctly.

Refer to the documentation to set this up.

Health Dashboard

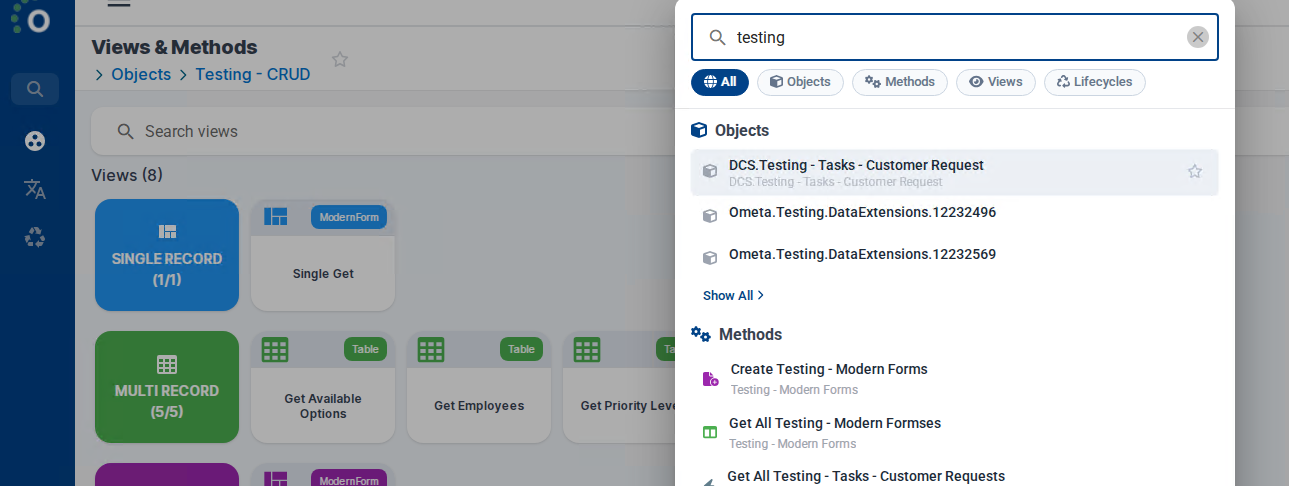

Ometa Nexus — Global Search

Ometa Nexus now features a Global Search window, allowing users to quickly search across all accessible data from a single search bar. This significantly speeds up navigation and finding records without having to open specific views first.

Press F3 or use the Global Search in the left menu.

Modern Forms — Horizontal Tab Indexes

Modern forms now support an optional horizontal tab layout. When enabled, tab indexes are rendered as horizontal tabs instead of the default vertical layout, giving administrators more flexibility in designing forms that suit their data entry workflows.

Tab index

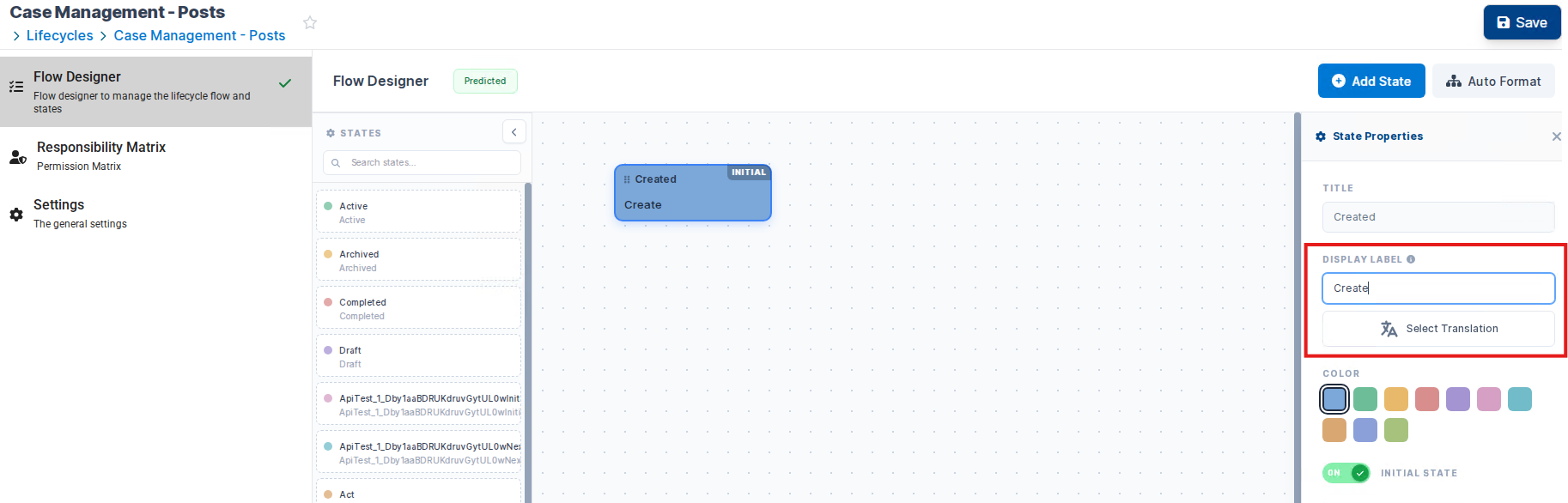

State Labels

States can now have labels assigned to them. This allows you to display a user-friendly, translatable name for each state in the lifecycle, improving clarity in the user interface.

Note

The Flow Designer in Ometa Nexus has been introduced with support for state label configuration. Going forward, configuration capabilities will be progressively added to Nexus as part of the platform transition away from the Ometa Business Connector. For features not yet available in Nexus, the Ometa Business Connector can still be used.

State labels

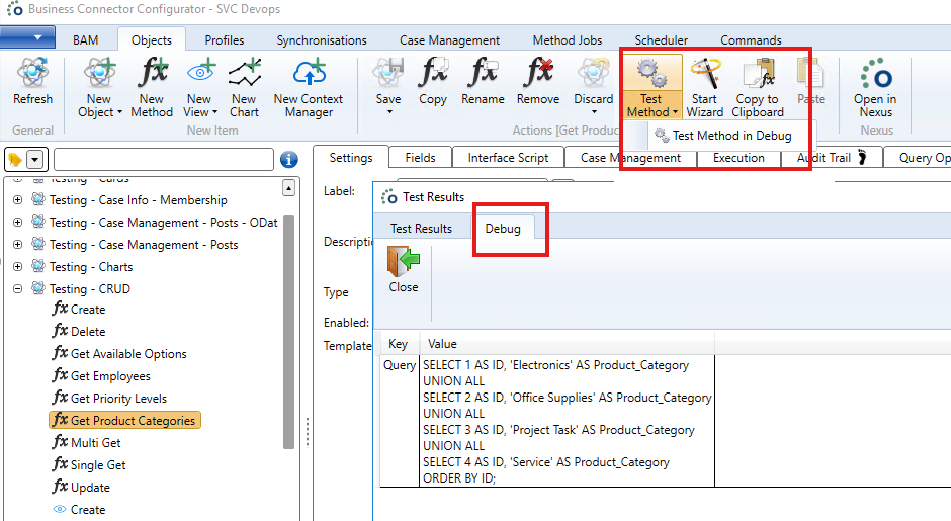

Method Debug Mode

It is now possible to execute ODBC, REST, OData and Web Service methods in debug mode. This provides detailed logging and diagnostics during method execution, making it significantly easier to troubleshoot integration issues without modifying the method configuration.

Debug

Job Execution History

The recording of job execution history has been improved. Job logs now capture more detailed information about each execution run, making it easier to review past job runs, identify failures, and analyze performance trends.

Refer to the documentation:

Data Extensions — Grouped By Fields

Output data extensions now support grouped by fields. This allows you to configure grouping on the output of data extensions. This is useful when the output data extension method requires input values to generate the additional data for merging with the main output.

Refer to the documentation.

Hot Reload Custom DLL

Custom DLLs loaded by the BCS_DLL4 process can now be hot-reloaded without restarting the service. When a new version of a DLL is deployed, the framework detects the change and loads the updated assembly automatically, reducing downtime during development and deployment cycles.

REST Interface — OPTIONS & HEAD Support

The Generic REST interface now supports OPTIONS and HEAD HTTP methods in addition to the existing GET, POST, PUT, PATCH and DELETE methods. Additionally, a new option has been added to include response headers in the method output, providing more control over REST-based integrations.

Performance Improvements

Case Management (DCS)

Hash-Based Matching: We replaced full table scans with an indexed, hash-based URL matching system (FindCaseByUrl).
Result: Searching through 1.4 million cases, which previously took ~5 seconds, is now instant.

Framework Caching

Query Optimization: We significantly reduced the number of queries executed during an ADM "prepare" call.
Efficiency: By leveraging new caching and checksum logic, the number of required queries has been reduced from 20 down to only 3 or 4 per call.

Method Cache (BCM)

Optimized Retrieval & Clearing: The method cache in the Business Connector Manager has been optimized for faster retrieval and more efficient cache invalidation, reducing overhead when executing methods.

Case Creation

Bulk Ensure: Case creation performance has been enhanced by implementing a bulk "ensure" mechanism. When creating multiple cases or cases with many properties, the framework now batches the required checks into fewer database operations.

Interface Script Caching

Runtime Caching: Interface scripts are now cached at runtime using the configuration cache. This eliminates redundant script compilation on repeated executions, improving response times for interfaces that use scripting.

Bug Fixes

ADM & Modern Forms

Fixed a browser crash that could occur when selecting multiple images in a media field.
Fixed an issue where print height and sorting/filtering settings could break headers on other pages.
Fixed inaccurate data returned by CSL.multiRecord.getPageData() when page filters were empty.
Fixed an error when CSL.multiRecord.select does not find any matching data to select.
Update form now correctly listens to context setter info instead of the record.
